Binary Numbers in AP CSP

In AP CSP, a binary number is written in base 2 using only 0 and 1. Each position is a power of 2, and computers use binary because digital hardware can reliably represent two states as bits.

What are binary numbers in AP CSP?

In AP CSP, a binary number is a number written in base 2. Binary uses only two digits: 0 and 1. Each position in a binary number represents a power of 2, such as 1, 2, 4, 8, and 16.

Tiny example: The binary number 101 means 4 + 1, so it equals decimal 5.

Start the Unit 2 path on the AP CSP Unit 2 Data hub, then deepen storage units on bits and bytes.

Why do computers use binary?

Computers use binary because digital hardware can represent two stable states. Those states can be interpreted as off/on, false/true, low voltage/high voltage, or 0/1.

Two-state hardware

Electronic circuits are easier to design reliably when they only need to distinguish between two states. It is much harder to build systems that must reliably distinguish ten different voltage levels for decimal digits.

Binary and digital data

Because computers use binary internally, all digital data can be represented as patterns of bits. Text, images, audio, video, numbers, and program instructions are all stored using 0s and 1s.

AP exam clue

If an AP CSP question asks why computers use binary, focus on two-state hardware and reliable representation. Do not say computers use binary because it is easier for humans.

Binary numbers and bits

A bit is one binary digit. It can be either 0 or 1. Binary numbers are made from sequences of bits.

For storage units, review bits and bytes.

How do binary place values work?

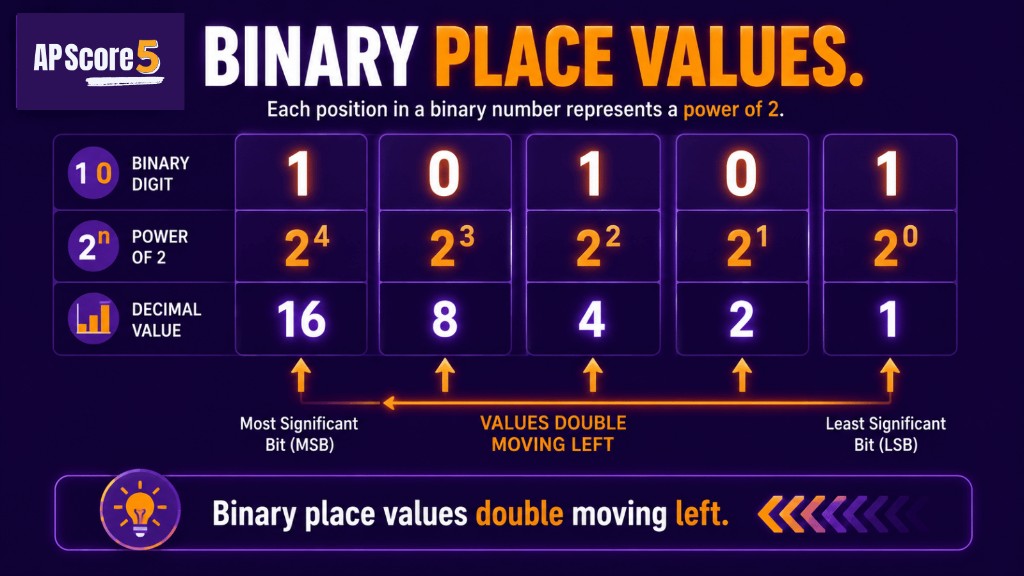

Binary place values double as you move left. Starting from the right, the place values are 1, 2, 4, 8, 16, 32, 64, and 128.

Binary place values double moving left, using powers of two to represent numbers.

Example: binary 101

To read 101 in binary, place the values 4, 2, and 1 under the digits. Add the values under 1s: 4 + 1 = 5. So 101₂ equals 5₁₀.

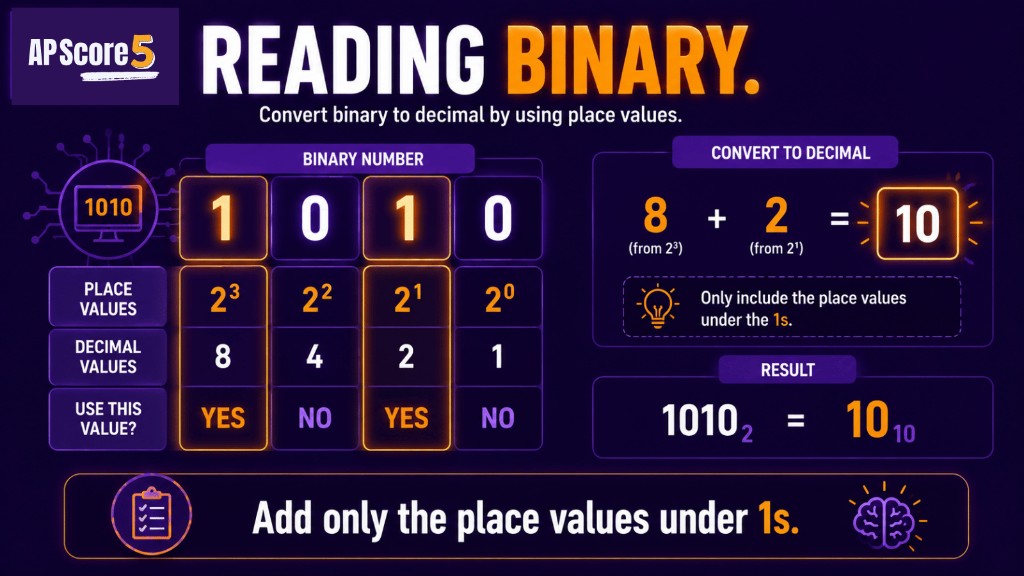

Example: binary 1010

For 1010₂, use place values 8, 4, 2, and 1. Add only the columns with 1s: 8 + 2 = 10.

To read binary numbers, add only the place values underneath the 1s.

Binary to decimal basics

To convert a small binary number to decimal, write the binary place values and add only the values where the digit is 1.

1. Start from the right.
2. Write place values: 1, 2, 4, 8, 16...
3. Match each binary digit to a place value.
4. Add only the place values under 1s.
5. Ignore zeros.

Need step-by-step drills? Use the binary to decimal conversion guide.

Common mistakes about binary numbers

Some AP CSP classes also discuss overflow when a fixed number of bits cannot store a larger value. Treat overflow as a storage-limit idea, not the main point of this page.

How AP CSP tests binary numbers

AP CSP binary questions usually test small, clear ideas. You are not expected to do huge conversions by hand.

After this page, try the Unit 2 quiz or the 50-question practice set.

AP CSP practice questions: Binary numbers

These are short topic checks. For the full mixed Unit 2 set, use the 50-question practice page. Tap an answer to reveal the explanation. Choices shuffle on load.

What you should be able to do now

Check each skill when you can explain it without looking at notes.

0 of 8 ready

• I can define a binary number.
• I can explain why computers use binary.
• I can define bit.
• I can identify binary place values.
• I can convert 101₂ to 5₁₀.
• I can convert 1010₂ to 10₁₀.
• I can explain that n bits represent 2ⁿ patterns.
• I am ready for binary-to-decimal drills or Unit 2 practice.

What to study next

For a printable outline, use AP CSP Unit 2 notes or the Unit 2 review map.
